Achieve Better Thermal Resistance
With The Most Advanced Wall Sheathing

Better Thermal Resistance Board (BTRboard) is an insulated wall sheathing product combining OSB or drywall with low-absorption foam in one product, eliminating extra layers and streamlining construction.

BTRboard
Composition

1

Fiberglass Facer

2

Polyiso Foam

3

Substrate Layer

1

Fiberglass Facer

2

Polyiso Foam

3

Substrate Layer

1. Inert Fiberglass Facer

  • Increases structural strength
  • Mold, moisture and fire resistant
  • Limits foam shrinkage & increases shear strength

2. Cross-Linked Medium Density Polyiso Foam

  • Moisture, fire & chemical resistant
  • High dimensional stability
  • Strong compressive strength (20 PSI)
  • 14% bio-based content
  • 70% better R-value than similar EPS Panels

3. Substrate Layer (material varies per application)

  • Rigid substrate works as nailing surface

Wall Construction Comparison

BTRboard enables builders to achieve code-compliant effective R-values using 2×4 construction, or exceed it with standard 2×6 construction. A BTRboard wall with 2x4s at 16″ o.c. and R-12 batts delivers an effective R Value of 17.4; meaning less lumber, less insulation, and a simpler assembly.

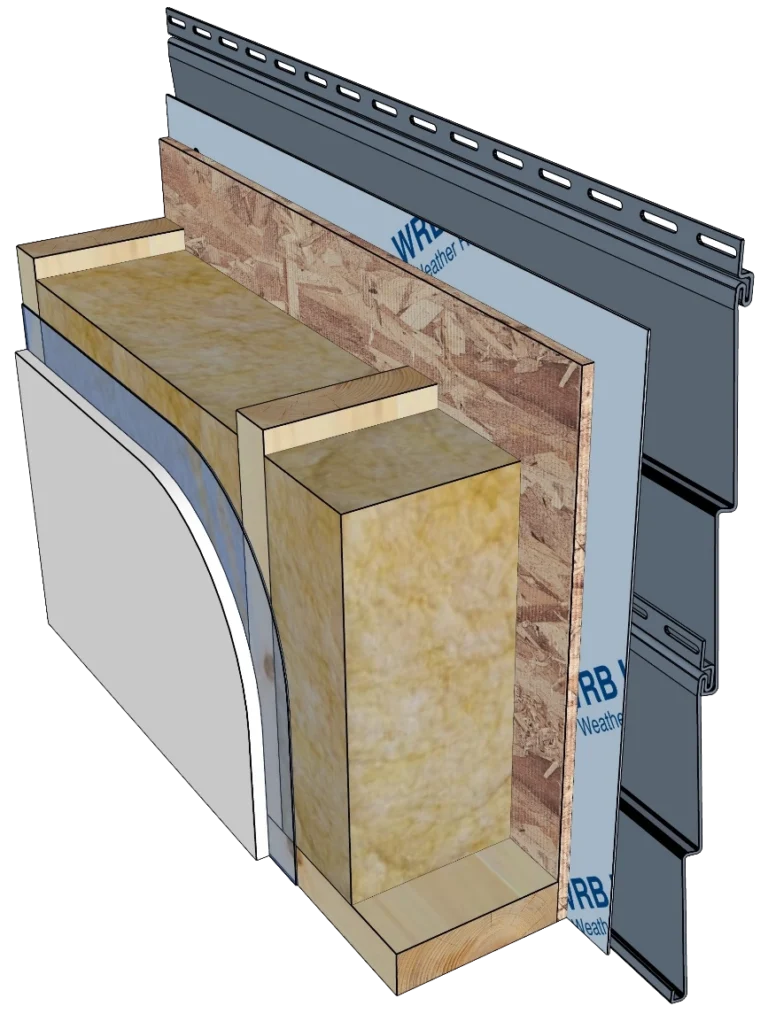

Conventional Wall Sheathing

VS

Effective

R-15.8

2x6 Wall Studs
R-19 Batts
OSB Sheathing

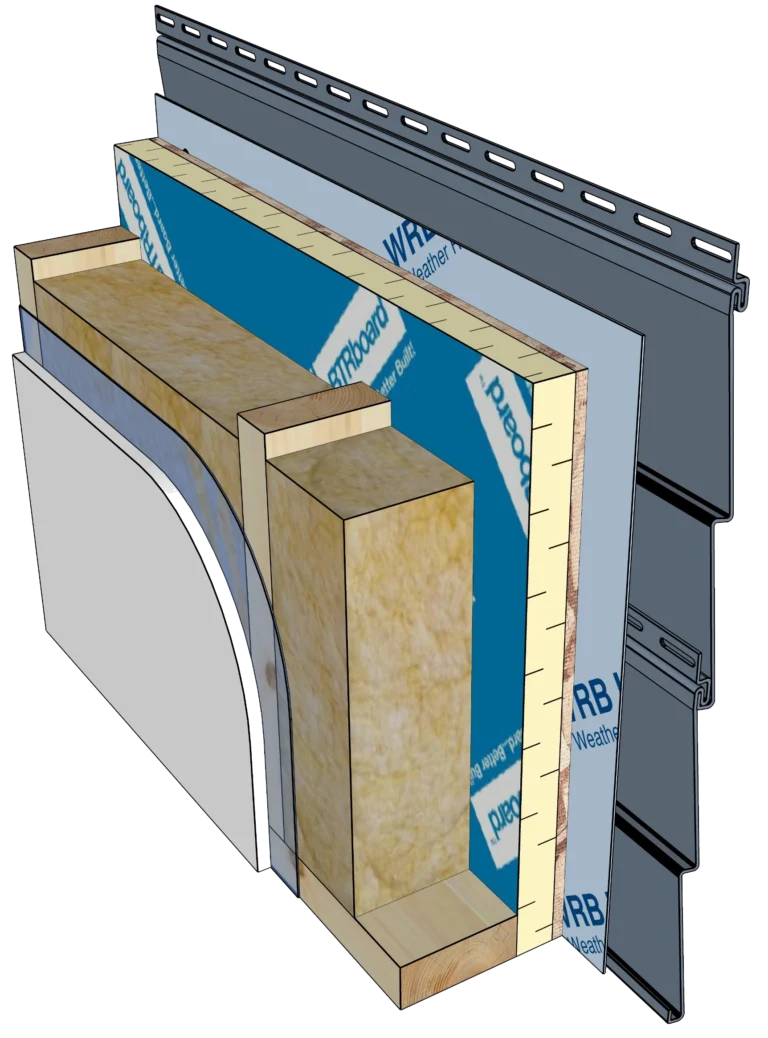

Effective

R-17.4

2x4 Wall Studs
R-12 Batts
BTRboard OSB

BTRboard Insulated Wall Sheathing

A 2x4 BTRboard wall provides UP TO 10% BETTER insulation than a standard 2x6, saving cost and maximizing floor space!

Conventional Wall Sheathing

VS

Effective

R-15.8

2x6 Wall Studs
R-19 Batts
OSB Sheathing

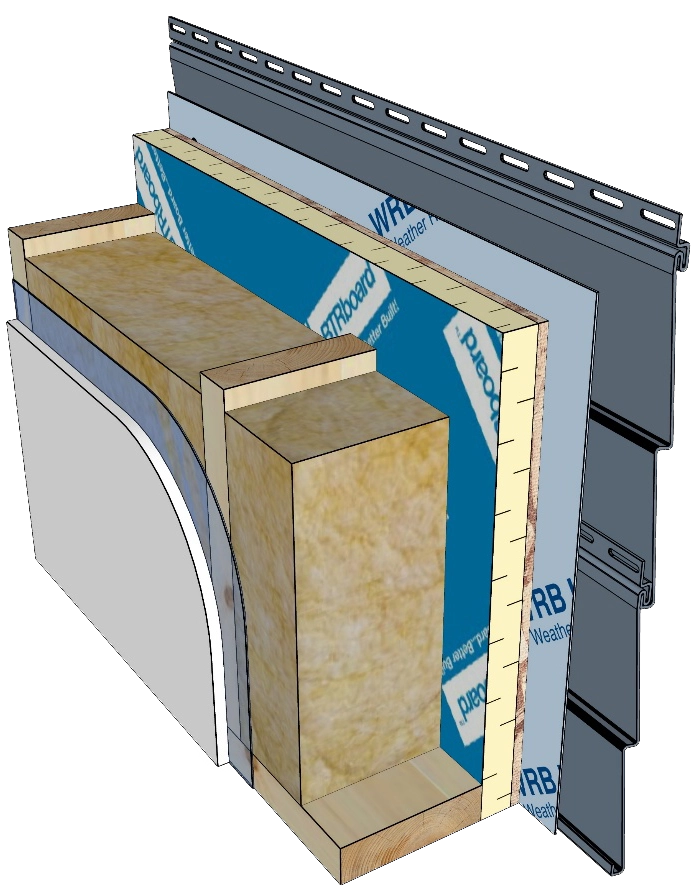

Effective

R-22.3

2x6 Wall Studs
R-19 Batts
BTRboard OSB

BTRboard Insulated Wall Sheathing

A 2x6 BTRboard wall performs UP TO 40% BETTER than a standard 2x6, using the same amount of lumber.

Build Better With
BTR Board Wall Sheathing

1

7/16” OSB Wall Sheathing

2

1 3/16” Medium Density Polyurethane Foam Core

3

Fibreglass Facer

  1. 7/16” OSB Wall Sheathing
  2. 1 3/16” Medium Density Polyurethane Foam Core
  3. Fibreglass Facer

BTRboard OSB | R-8.75

Our flagship product. BTRboard panels provide an innovative alternative to conventional building methods, while meeting or exceeding building codes.

  • Code compliant exterior wall insulation adds R-8.75 to wall assemblies
  • 2×4 wall assemblies utilizing BTRboard OSB outperform standard 2×6 walls with R-20 batts by up to 10%.
  • Easy installation over standard assemblies without extra labour or materials strapping to make it comparable with vinyl siding
Data Efficacy

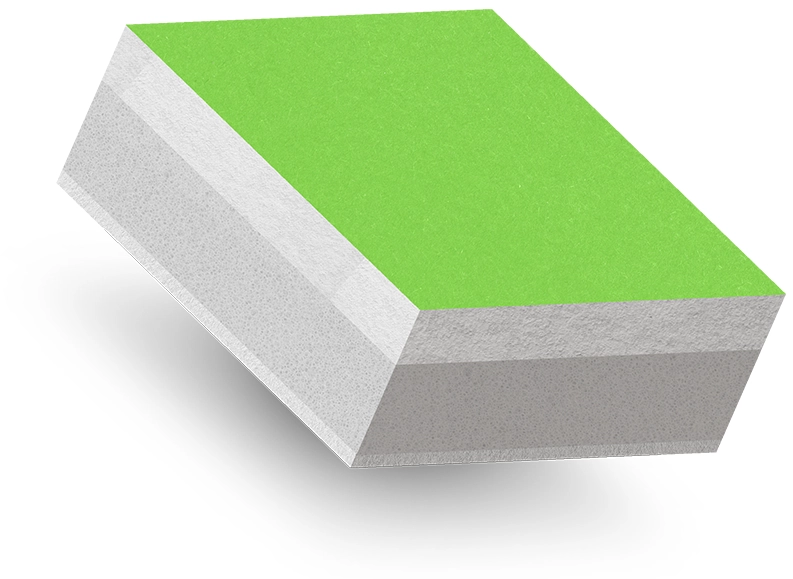

BTRboard Fire-X | R-7.43

BTRboard Fire-X is the only 45-minute fire-rated insulated panel that supports vinyl cladding. Designed for zero-lot line homes, BTRboard Fire-X combines fire protection and easy to install exterior insulation wrap without the need for extra materials or labour.

  • 45 Minute Fire rating with CAN/ULS S101 and S134 fire certifications
  • Ideal for zero lot line builds or multi-family developments
  • Easy installation over standard assemblies without extra labour or materials like steel studs or mineral glass
  • Comparable with vinyl siding, no strapping required
  • Adds R-7.43 to wall assemblies
Data Efficacy

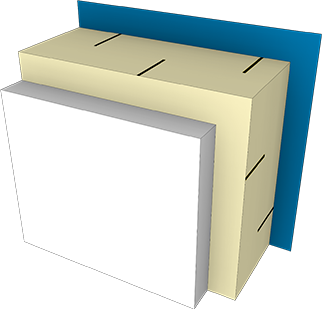

1

5/8” Gypsum Drywall Sheathing

2

1” Medium Density Polyurethane Foam Core

3

Fibreglass Facer

  1. 5/8” Gypsum Drywall Sheathing
  2. 1” Medium Density Polyurethane Foam Core
  3. Fibreglass Facer
1

3/8” OSB Treated Wall Sheathing

2

1 1/4” Medium Density Polyurethane Foam Core

3

Fibreglass Facer

  1. 7/16” Fire Resistant OSB
  2. 1- 3/16” Medium Density Polyurethane Foam Core
  3. FIBREGLASS FACER

BTRboard OSB Resist | R-8.75

Ideal for fire resistance during construction, BarrierTek™ fire-resistant OSB helps meet fire codes for protection throughout the construction phase.

  • Barrier Tek coated OSB provides 15 Minute Fire resistance.
  • Code compliant exterior wall insulation adds R-8.75 to wall assemblies.
  • Easy installation over standard assemblies without extra labour or materials strapping to make it comparable with vinyl siding.
  • 2×4 wall assemblies utilizing BTRboard OSB outperform standard 2×6 walls with R-20 batts by up to 10%.
Data Efficacy

BTR Board Benefits

BTRsavings

• Lower Energy Costs
• Reduce Materials & Labour
• Prevent Future Repairs

BTRcomfort

• Increase Warmth
• Prevent Drafts
• Reduce Noise

Environment

• No Microplastics
• Lower Energy Consumption
• Low Carbon Footprint

BTRbuilt

• Added Structural Rigidity
• Code Compliant With 2x4s
• Increase R-value
